Inertial measurement unit

GS-902

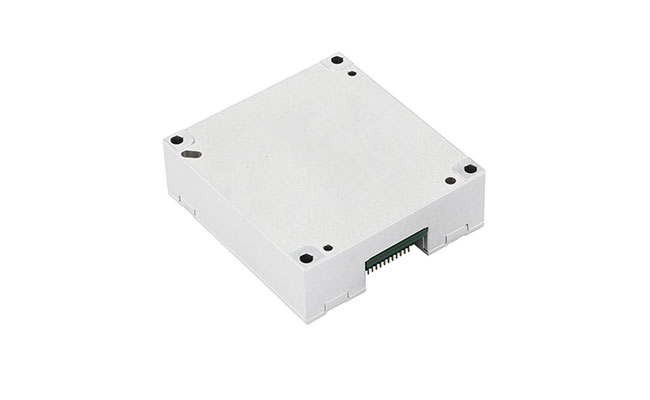

The nine-axis MEMS inertial measurement unit consists of three-axis MEMS gyro chips, three-axis MEMS accelerometer chips, three-axis magnetometers, atmospheric pressure sensors,temperature sensors, digital signal processing circuits, structure, and software. The product features a unique structural design, with software incorporating algorithms such as full-temperature compensation, installation misalignment angle compensation, and nonlinear compensation. This ensures excellent performance even in static, dynamic, and harsh environmental conditions, providing users with outstanding and reliable measurement data.
Details
Parameter

OTHER INTRODUCTION

l  Low vibration rectification error.

l  Low cost design, and high cost performance.

l  Good repeatability and high reliability.

l  Small size, low power consumption and light weight.

l  Sensor full factor compensation.


SCENE APPLICATION

l  Guided munitions.

l  EOP (Electro-optical Pod).

l  Stabilization platform.

l  High-speed railway.

l  Oil exploration.

Parameters

(typical values)

UnitBasic type
Gyroscope

Output range

(customizable)

°/s±450

Bs bias instability

(@Allan variance)

°/h5

Bs bias stability

(10s smooth,1σ, room temperature)

°/h
10
Br bias repeatability
°/h20
Bt deviation over the whole temperature range°/h60
Bas bias acceleration sensitivity°/h/g20
Scale factor nonlinearityppm200
Scale factor repeatabilityppm200
Random walk°/√h0.26
Resolution

°/s

0.01

Cross coupling

%

0.2
BandwidthHz330


Parameters

(typical values)

UnitBasic type

Accelerometer

Output range

(customizable)

g±20

Bs bias instability

(@Allan variance)

mg0.07

Bs bias stability

(10s smooth,1σ, room temperature)

mg
0.25

Br bias

repeatability

mg0.5

Bt deviation over the whole temperature range

mg3
Scale factor repeatabilityppm500
Scale factor nonlinearity
ppm500
Random walkm/s/√h0.029
Cross coupling%0.2
BandwidthHz250
Magneto-meterDynamic measurement rangegauss±2.5
Sensitivitymgauss/LSB0.1
Barometer
Pressure rangembar300~1100
Sensitivitymbar/LSB6.1×10-7
