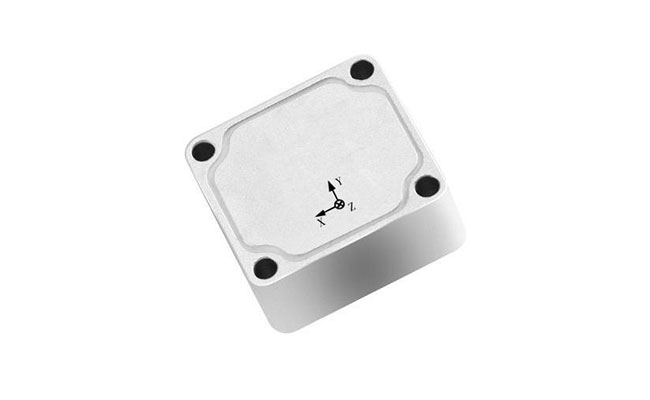

GS-603

Inertial measurement unit

The six-axis MEMS inertial measurement unit consists of MEMS gyro chips, MEMS accelerometer chips, temperature sensors, digital signal processing circuits, and software. It is used for real-time measurement of the three-axis angular rates and three-axis linear accelerations of the carrier. The product adopts miniaturization and anti-vibration, shock-resistant structural design, and incorporates algorithms such as full-temperature compensation , installation misalignment angle compensation, and nonlinear compensation. This ensures that the product maintains excellent performance even in static, dynamic, and harsh environmental conditions including large impacts and high overloads. It outputs stable and reliable six degrees of freedom measurement data to users via a high-speed RS- 422 serial port after error compensation.

OTHER INTRODUCTION

l Low vibration rectification error.

l Shock resistance, high overload resistance.

l Low cost and high cost performance.

l Sensor full factor compensation.

l Small in size, light in weight and convenient for installation.

SCENE APPLICATION

l Guided munitions.

l EOP (Electro-optical Pod).

l Stabilization platform.

l High-speed railway.

l Oil exploration.

Parameters (typical values)		Unit	Basic type	Type A	Type B	Type C
Gyroscope	Output range (customizable)	°/s	±500	±1000	±2000	±4000
	Zero offset	°/h	180	180	180	180
	Bs bias instability (@Allan variance)	°/h	5	5	10	15
	Bs bias stability (10s smooth,1σ, room temperature)	°/h	10	10	10	10
	Br bias repeatability	°/h	20	20	30	50
	Bt deviation over the whole temperature range	°/h	60	60	100	100
	Random walk	°/√h	0.5	0.5	1	1
	Bas bias acceleration sensitivity	°/h/g	20	20	20	20
	Resolution	°/h	0.01	0.01	0.01	0.01
	Output noise (half peak)	°/s	0.4	0.4	0.45	0.45
	Bandwidth	Hz	200
	Scale factor nonlinearity	ppm	200
	Scale factor repeatability	ppm	200
	Cross coupling	%	0.2

Parameters (typical values)		Unit	Type I	Type II	Type III
Accelerometer	Output range (customizable)	g	±10	±20	±40
	Bs bias stability (10s smooth,1σ, room temperature)	mg	0.05	0.1	0.2
	Br bias repeatability	mg	0.2	0.5	1
	Bt deviation over the whole temperature range	mg	2	2	2
	Resolution	mg	0.1	0.1	0.1
	Bandwidth	Hz	100
	Scale factor repeatability	ppm	500
	Scale factor nonlinearity	ppm	500
	Cross coupling	%	0.1
