GS-602

Inertial measurement unit

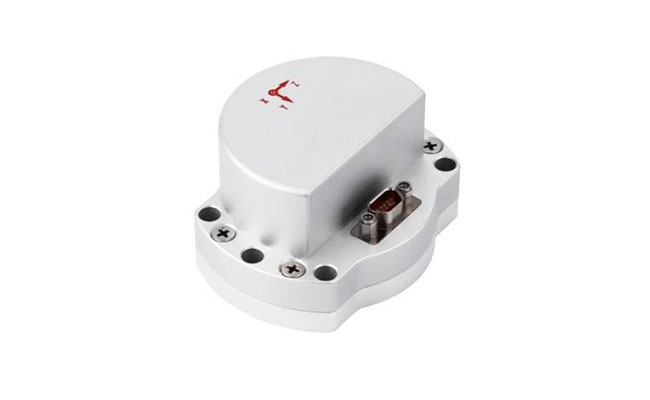

The six-axis MEMS inertial measurement unit consists of high-precision MEMS gyro chips and domestically-produced high-precision MEMS accelerometer chips, temperature sensors, digital signal processing circuits, and software. It is used for real-time measurement of the three-axis angular velocity and three-axis linear acceleration of the carrier. It is compatible with Honeywell HG4930 series products. The product utilizes a unique anti-vibration, shock-resistant structural design, and flexible connection technology. The software incorporates algorithms such as full-temperature compensation, installation misalignment angle compensation, and nonlinear compensation, ensuring excellent performance even in static, dynamic, and harsh environmental conditions. It outputs high-quality and reliable six degrees of freedom measurement data to users via a high-speed RS-422 serial port after error compensation.

OTHER INTRODUCTION

l Low vibration rectification error.

l Low latency, high reliability.

l Low power consumption, low latency, and shock resistance.

l Sensor full factor compensation.

SCENE APPLICATION

l Guided munitions.

l EOP (Electro-optical Pod).

l Stabilization platform.

l High-speed railway.

l Oil exploration.

Parameters (typical values)		Unit	Basic type	Type A	Type B	Type C	Type F
Gyroscope	Output range (customizable)	°/s	±400	±400	±400	±2000	±300
	Zero offset	°/h	15	10	5	30	3
	Bs bias instability (@Allan variance)	°/h	0.3	0.1	0.05	1	0.03
	Bs bias stability (10s smooth,1σ, room temperature)	°/h	3	2	0.4	6	0.2
	Br bias repeatability	°/h	3	1	0.3	3	0.1
	Bt deviation over the whole temperature range	°/h	20	10	2	30	1
	Random walk	°/√h	0.15	0.05	0.02	0.3	0.01
	Bas bias acceleration sensitivity	°/h/g	2	2	2	2	2
	Resolution	°/h	2	1	0.5	5	0.3
	Output noise (half peak)	°/s	0.3	0.25	0.15	0.45	0.15
	Bandwidth	Hz	125				100
	Scale factor nonlinearity	ppm	100
	Scale factor repeatability	ppm	100

Parameters (typical values)		Unit	Type I	Type II	Type III	Type IV
Accelerometer	Output range (customizable)	g	±10	±30	±50	±80
	Bs bias stability (10s smooth,1σ, room temperature)	mg	0.05	0.2	0.5	1
	Br bias repeatability	mg	0.1	0.2	0.3	0.5
	Bt deviation over the whole temperature range	mg	1	2	3	5
	Resolution	mg	0.1	0.1	0.1	0.1
	Bandwidth	Hz	125
	Scale factor repeatability	ppm	500
	Scale factor nonlinearity	ppm	500
	Cross coupling	%	0.1
